ROUND ONE COLOURS ARE BACK!
If you missed out on the iconic round 2 colours of HIBIKI, now's your chance to lock one down.
We've got all four of the OG colours in stock - with an updated 'FROSTED' polycarbonate base.
Quantities are extremely limited and won't last long.
SCROLL DOWN FOR IMAGES
Meet HIBIKI, our 65% keyboard.
HIBIKI is a 65% keyboard with a strikingly curved profile and a visually stunning injection-moulded polycarbonate base.
BUILD GUIDE
Important details:
- 65% layout
- 6-degree typing angle
- Isolation mount using 1.6mm PORON foam pads with a leaf spring plate
- Aluminium Top
- Machined, bead blasted, and then either anodised/e-coated
- Polycarbonate Base
- Thick injection-moulded Polycarbonate, post-machined.
- wilba.tech WT65-H3-HIBI PCB
- Supports full and split backspace, 7U and 6.25U spacebar
- Over-current and ESD protection
- Kailh hot-swap sockets rated at 5,000 cycles
- QMK and VIA support
- 4.0mm PORON foam sheet compressed between PCB and plate to optionally change the sound profile by filtering out higher frequencies to create a warmer tone
- OPTIONAL: additional solderable PCB to support ISO, 6.25U+5 mods, stepped capslock
NOTES:

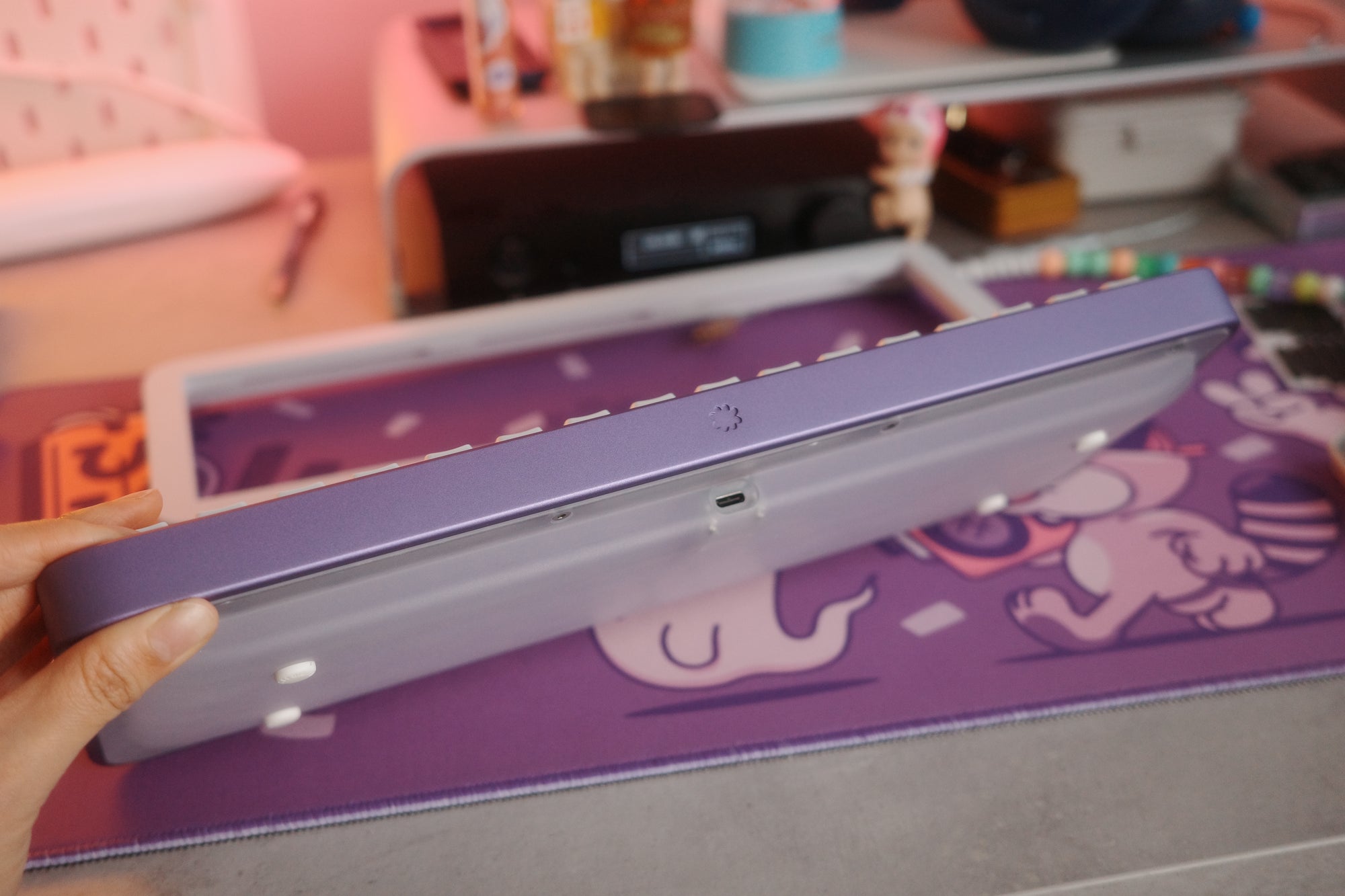

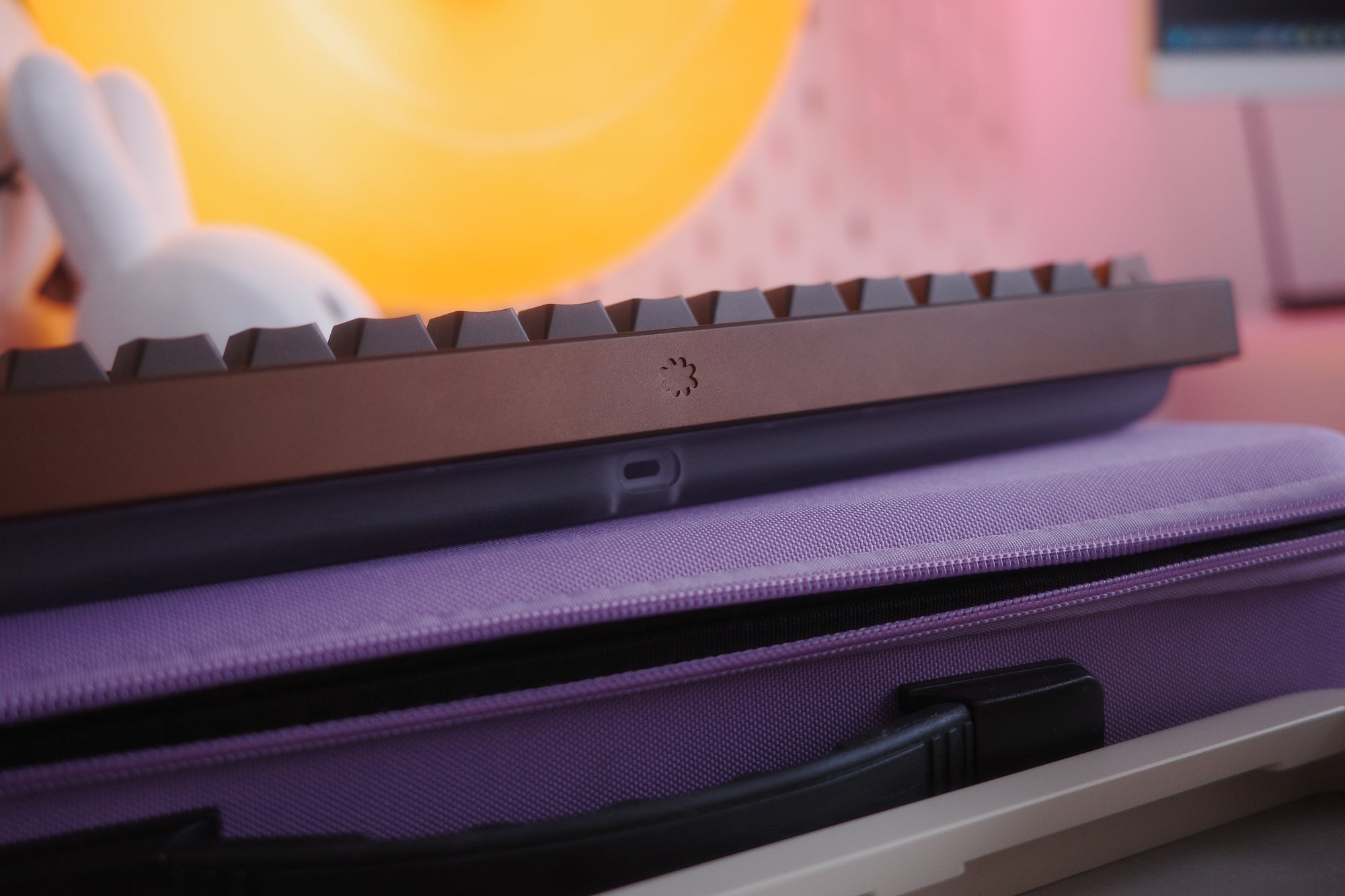

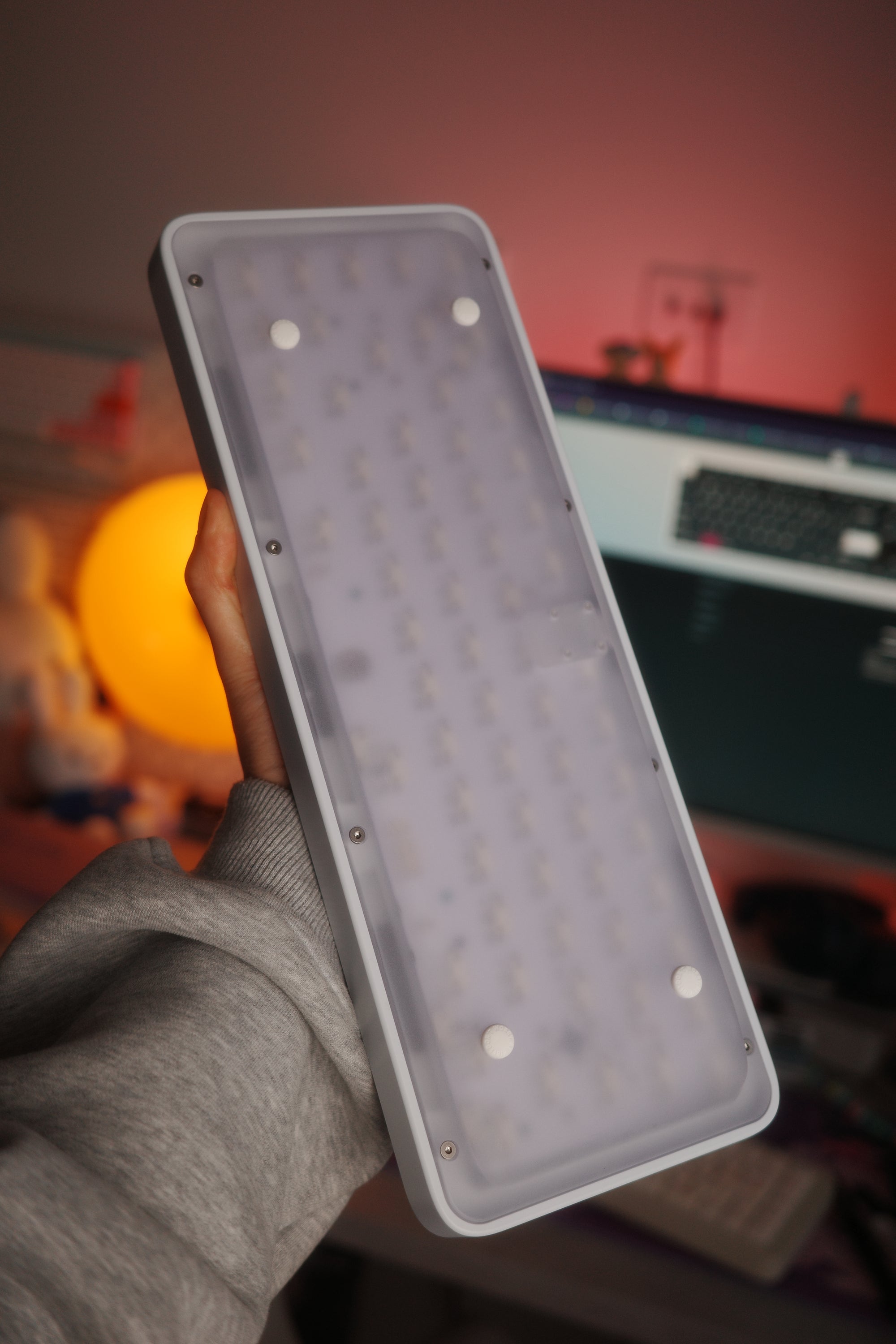

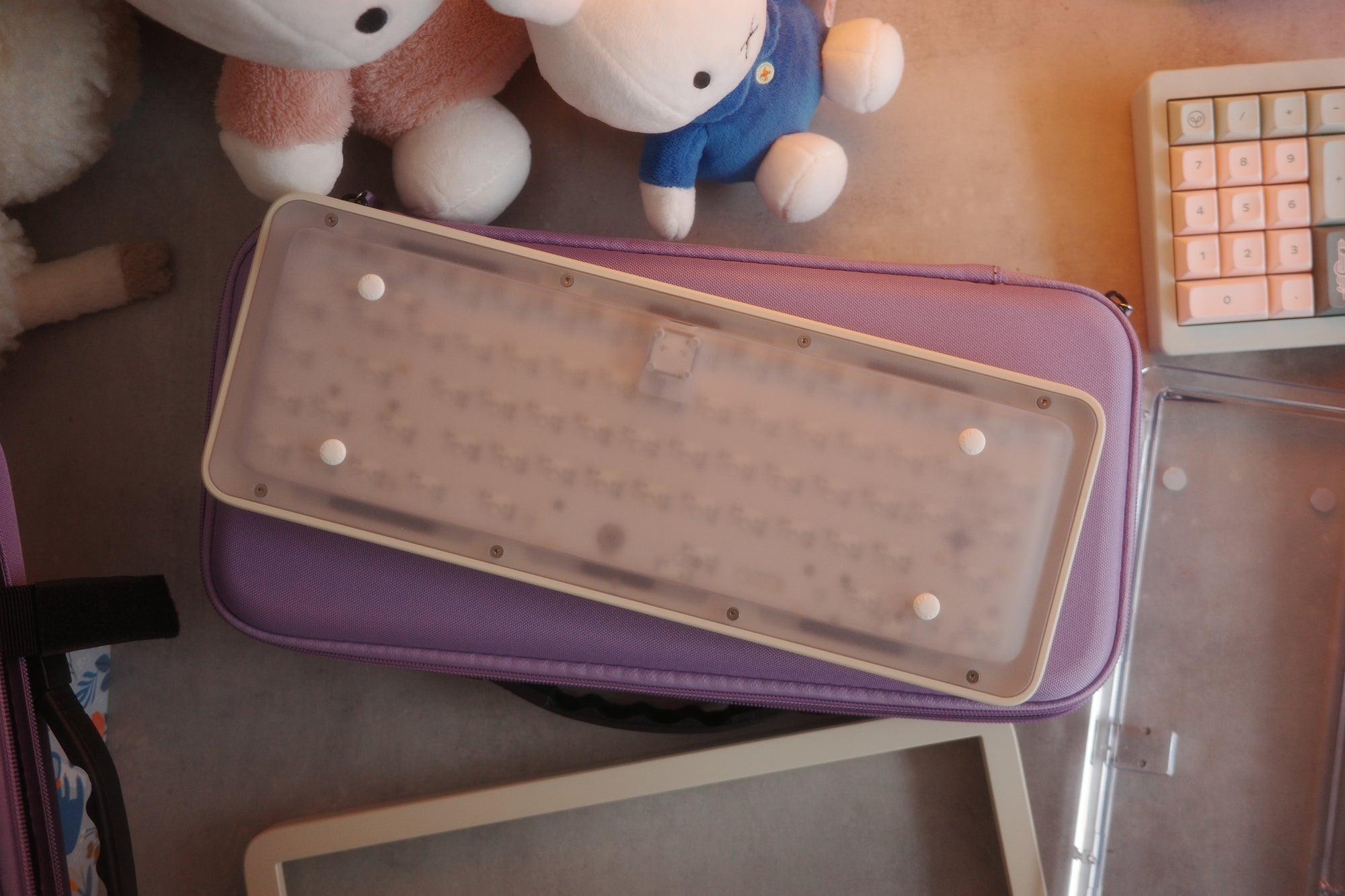

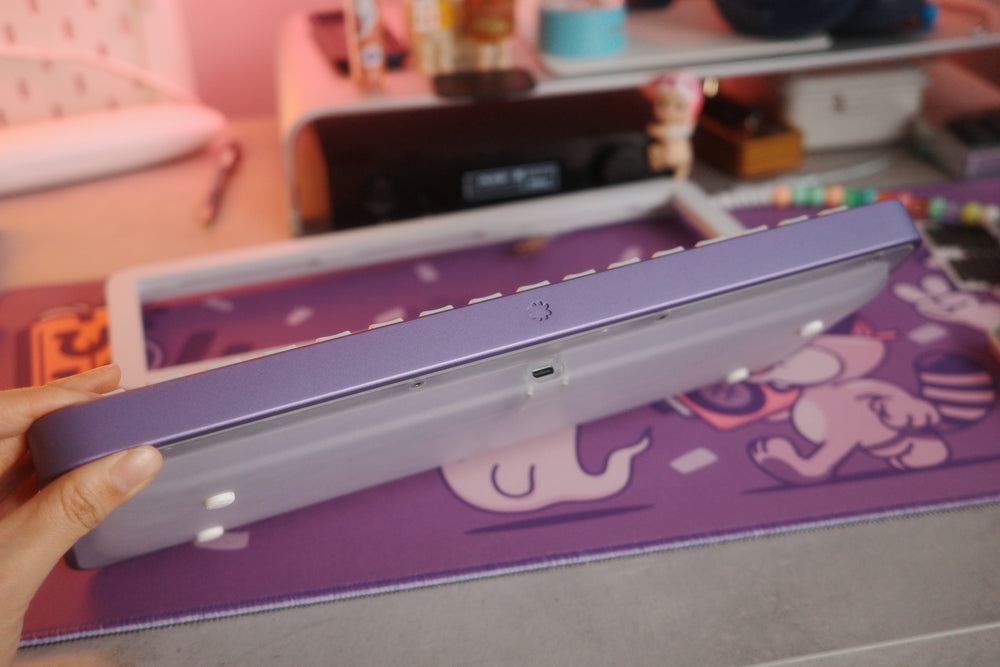

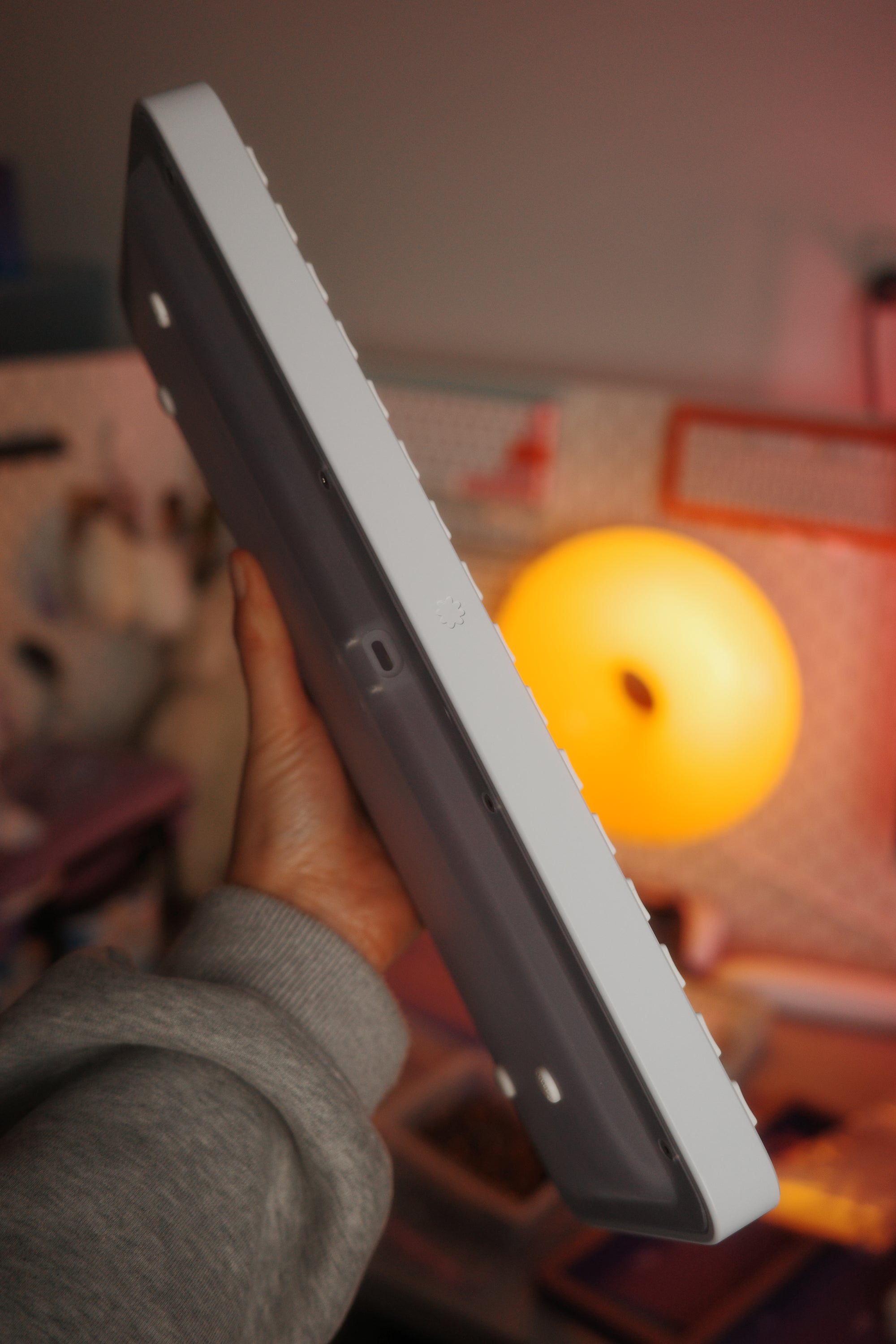

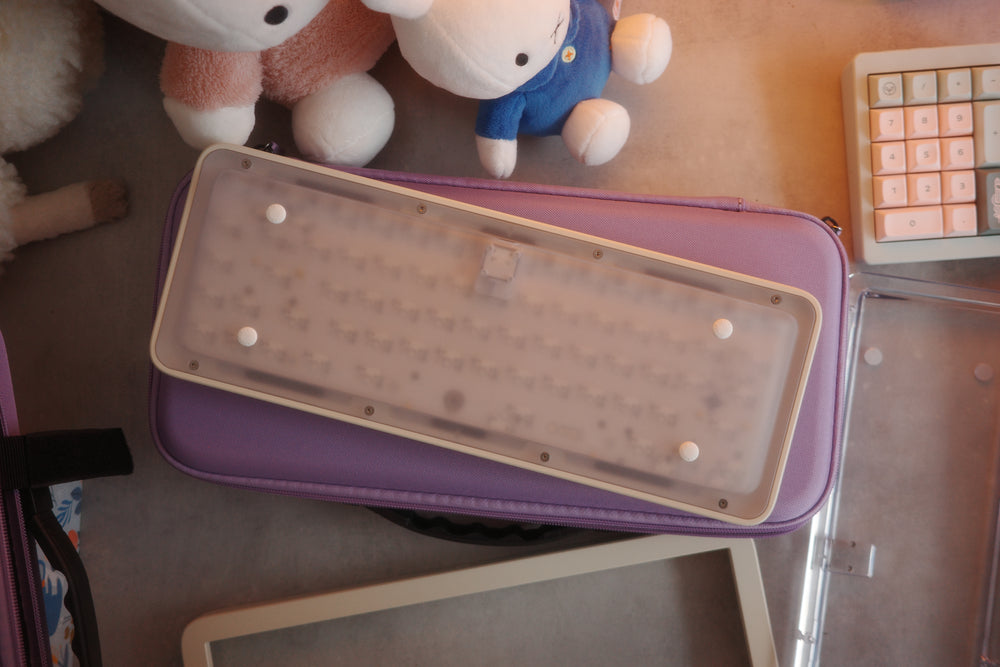

Renders show a clear base (from R1). Please refer to images for accurate representation of the frosted base.
This product contains a mix of machined and injection moulded parts.
Please click here to see what to expect from our off-tooled injection moulded, post-finished parts.
Overall Dimensions
Hotswap Layout Options
CONTENTS
-
1 x Aluminium top
-
1 x Polycarbonate base (frosted)
-
1 x wilba.tech WT65-H3-HIBI PCB (hotswap)
-
1 x 1.5mm polycarbonate plate
-
1 x PORON sheet (Gaskets)
-
1 x PORON sheet - Plate foam
-
4 x HIBI rubber feet
-
8 x M2.5*12 mm Anodised Aluminium Hex Socket Head Screw
- 4 x M2 X 4 mm Stainless Steel Torx Socket Head Screw
-
6 x M2 X 3 mm Stainless Steel Torx Countersunk Screw
-
6 x M2 X 3 mm Stainless Steel Torx Socket Head Screw
-
6 x M2 X 3.5 mm Stainless Steel Spacer
-
HIBI travel case (purple)
This product is sold without switches, stabilisers, keycaps or USB cables.
